Customized Size YG11C Alloy Tungsten Carbide Plate with Glossy Surface for High Wear Resistance and Corrosion Resistance

Product Categories

Chengdu Kedel Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Customized Size YG11C Alloy Tungsten Carbide Plate with Glossy Surface for High Wear Resistance and Corrosion Resistance

Place of Origin : China

MOQ : 5

Price : $16-20

Material Composition : Tungsten carbide and cobalt

Surface Finish : Glossy

Alloy Specification : YG8, YG6, YG6X, YG9C, YG11C, YG13C

Density : 14.90 g/cm³ (YG6X)

Hardness : 93.0 HRA (YG6X)

TRS : 2700 Mpa (YG6X)

Porosity : A02/B00/C00

Grain Size : 0.6-0.8 μm (YG6X)

Shape : Plates

Color : Alloy

Power Source : Electric

Engine Type : Electric

Customizable Size : Yes

Minimum Order : 5 PIECES

Usage : Secondary processing

Contact Now

Customized Size YG11C Alloy Tungsten Carbide Plate with Glossy Surface for High Wear Resistance and Corrosion Resistance

Products Description

Product Paramenters

Grade	Composition(% in weight)							Physical Properties						Grain size(μm)
	Composition(% in weight)									Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)	Porosity
		WC	Ni	Ti	TaC				A/B/C	Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)
KD115/YG6X	93.5	6.0	-	0.5	14.90	93.0	2700	A02/B00/C00	0.6-0.8
KD335/YG10X	89.0	10.5	-	0.5	14.40	91.8	3800	A02/B00/C00	0.6-0.8
KG6/YG6	94.0	6.0	-	-	14.90	90.5	2500	A02/B00/C00	1.2-1.6
KG8/YG8	92.0	8.0	-	-	14.75	90.0	3200	A02/B00/C00	1.2-1.6
KG9/YG9	91.0	9.0	-	-	14.60	89.0	3200	A02/B00/C00	1.2-1.6
KG9C/YG9C	91.0	9.0	-	-	14.60	88.0	3200	A02/B00/C00	1.6-2.4
KG10/KG10	90.0	10.0	-	-	14.50	88.5	3200	A02/B00/C00	1.2-1.6
KG11/YG11	89.0	11.0	-	-	14.35	89.0	3200	A02/B00/C00	1.2-1.6
KG11C/YG11C	89.0	11.0	-	-	14.40	87.5	3000	A02/B00/C00	1.6-2.4
KG13/YG13	87.0	13.0	-	-	14.20	88.7	3500	A02/B00/C00	1.2-1.6
KG13C/YG13C	87.0	13.0	-	-	14.20	87.0	3500	A02/B00/C00	1.6-2.4
KG15/YG15	85.0	15.0	-	-	14.10	87.5	3500	A02/B00/C00	1.2-1.6
KG15C/YG15C	85.0	15.0	-	-	14.00	86.5	3500	A02/B00/C00	1.6-2.4
KD118/YG8X	91.5	8.5	-	-	14.50	93.6	3800	A02/B00/C00	0.4-0.6
KD338/YG12X	88.0	12.0	-	-	14.10	420092.8	2200	A02/B00/C00	0.4-0.6
KD25/P25	77.4	8.5	6.5	6.0	12.60	91.8	2200	A02/B00/C00	1.0-1.6
KD35/P35	69.2	10.5	5.2	13.8	12.70	91.1	2500	A02/B00/C00	1.0-1.6
KD10/M10	83.4	7.0	4.5	4.0	13.25	93.0	2000	A02/B00/C00	0.8-1.2
KD20/M20	79.0	8.0	7.4	3.8	12.33	92.1	2200	A02/B00/C00	0.8-1.2

NOTE: Customization available per customer drawing or actual sample

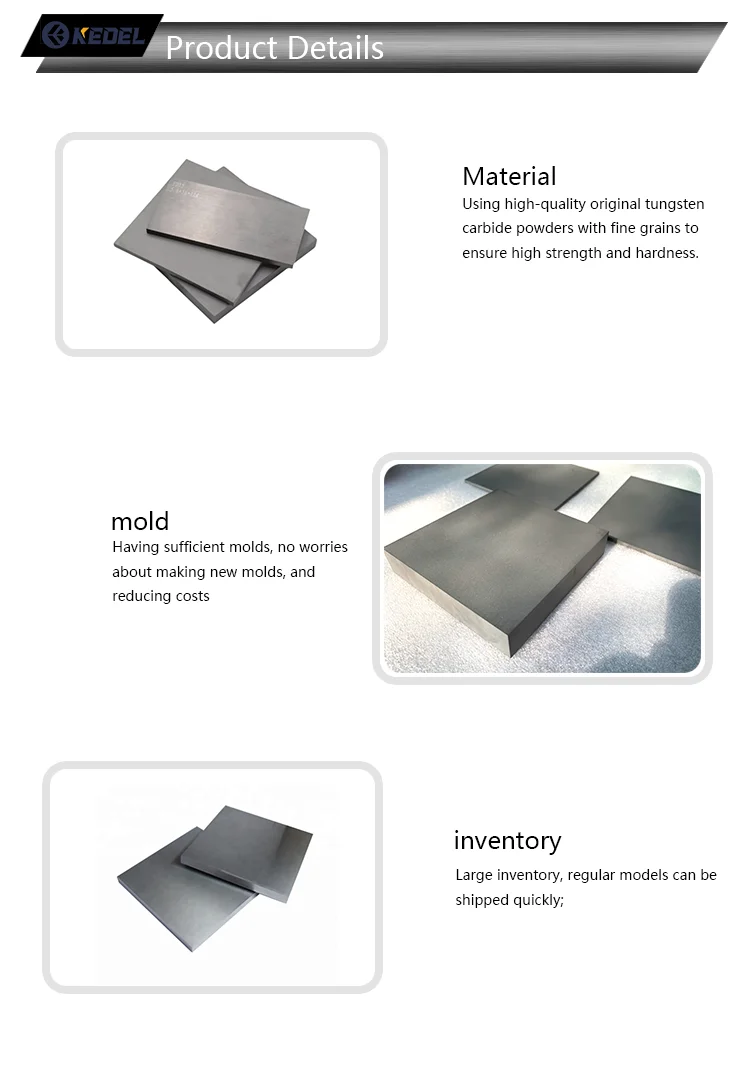

Details Images

Why Choose Us

Company Profile

Exhibition

In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward
